Rearmaster Backup Camera Kit,7 Inch Monitor Screen With 18 LED Night Vison Rear View Camera For Large Vehicles Truck/Trailer/Pickup/RV/Van/Bus/Motor Home/Harveste

Regular price
Regular price
Sale price
Shipping calculated at checkout.


Sku : RM07018CT

In Stock


  • Japanese 1/3 CCD chipset, 6-layer glass lens,more sharp and clear picture quality, 150°wide angel, integrated 18 LEDs for better night vision.

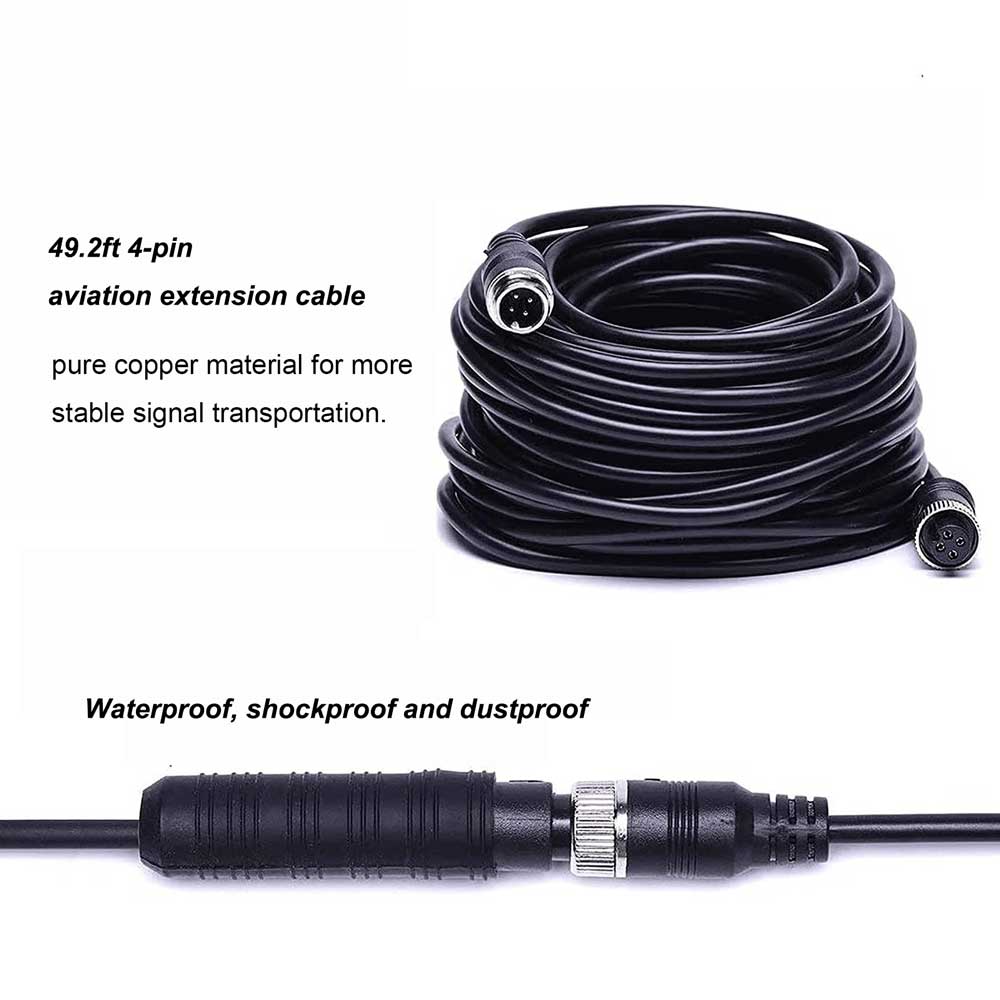

  • Aluminum camera case. Waterproof, shockproof and dustproof. 49.2ft 4-pin aviation extension cable. Pure copper material for more stable signal transportation.

  • 7 inch rearview TFT monitor, high resolution screen, adjustable bracket, support 2 video input switching.Support monitor remote control.

  • 12V-35V wide voltage design, can be use for most of the large vehicles, such as truck, bus, RV, trailer, caravan and campers.


Key Specification:


  • Power Supply: DC 9V-35V

  • Display Rate: 4:3 / 16:9 select

  • TV system: PAL (CCIR), NTSC (EIA) PAL: 625 Lines; NTSC: 525 Lines

  • Effective Pixels: 800(RGB)×480 pixels

  • Brightness:400cd/㎡

  • Power Consumption:7.5W

  • Operate mode: Key operation & remote control

  • 1 or 2 Video signal input

  • Automatically Switch: The monitor will automatically switch to rear view camera image when reversing

  • Ultra-low power consumption, to prevent over heat and easy to install.

  • Operating temperature: -20℃ - +75℃

  • Storage temperature: -20℃ - +75℃

  • Language:Chinese,English,Japanese,Germany,French,Russian,Spanish,Portuguese,Italiano,Turkish,Polish


  • Vision Degree:150°

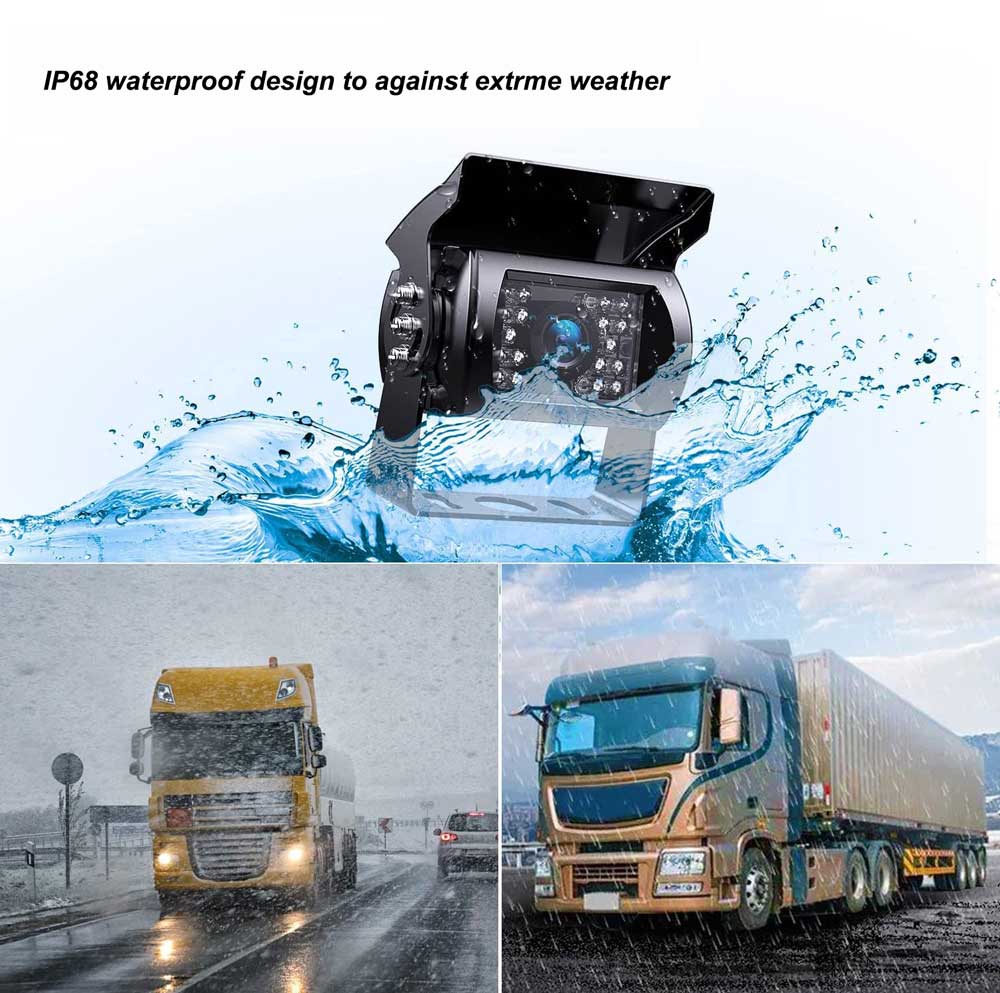

  • Waterproof grade: IP68

  • Operating voltage: 9V-35V

  • Signal format: PAL /NTCS

  • Resolution:800TV lines

  • Chipset:1/3 inch CCD

  • Vertical Sync Frequency:50/60Hz

  • Minimum illumination:0.01luk/f1.2

  • Power Cord: 4 pin

Cable length:
Extension cable:49.2ft
Cigar lighter cable:9.84ft
Conversion cable:1.7ft

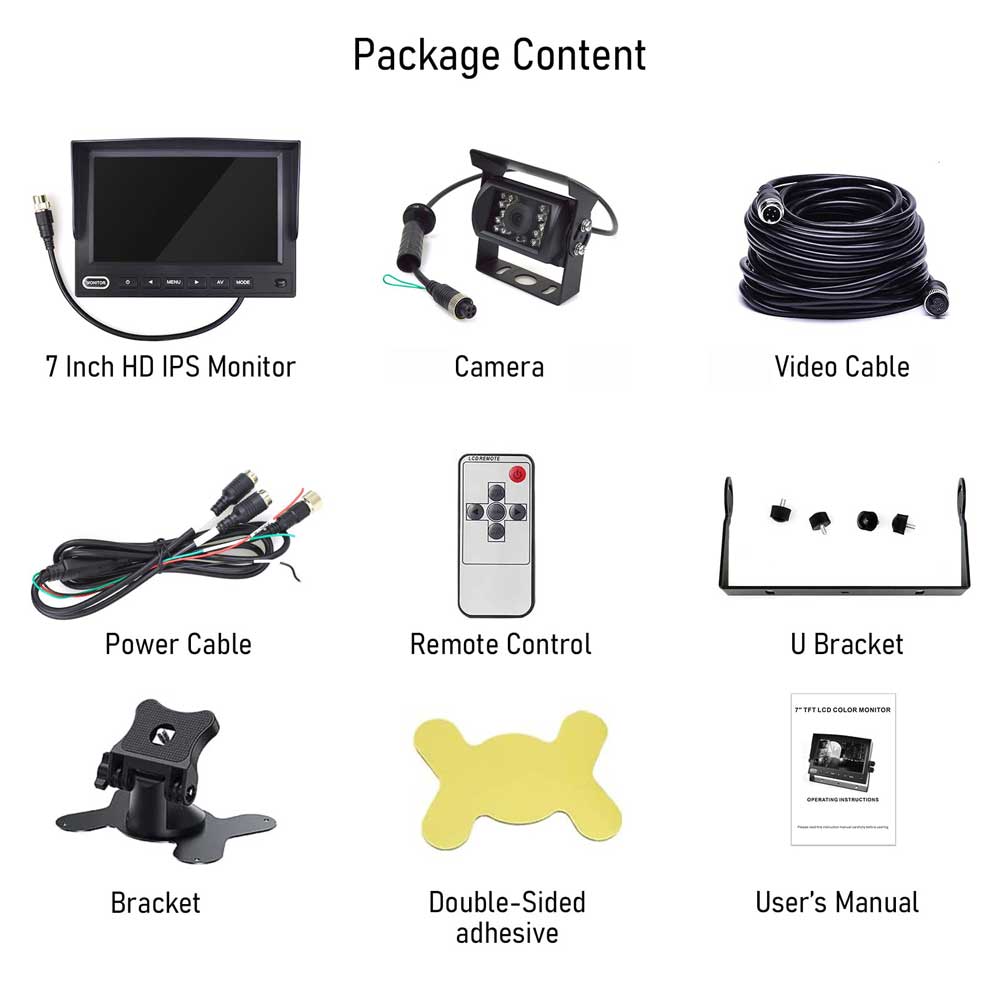

1*Video cable
1*Power cable
1*Remote control
