REARMASTER Ford Emblem Backup Camera for Ford F150/F250/F350/F450/F550 2004-2016

Regular price
$75.98
Regular price
Sale price
$75.98
Shipping calculated at checkout.

Vendor : REARMASTER

Sku : RMH5511

In Stock

Features:

This tailgate handle rear view camera is a replacement for Ford F150/F250/F350/F450/F550 (2004-2016 Models)

AHD 1080P picture quality,

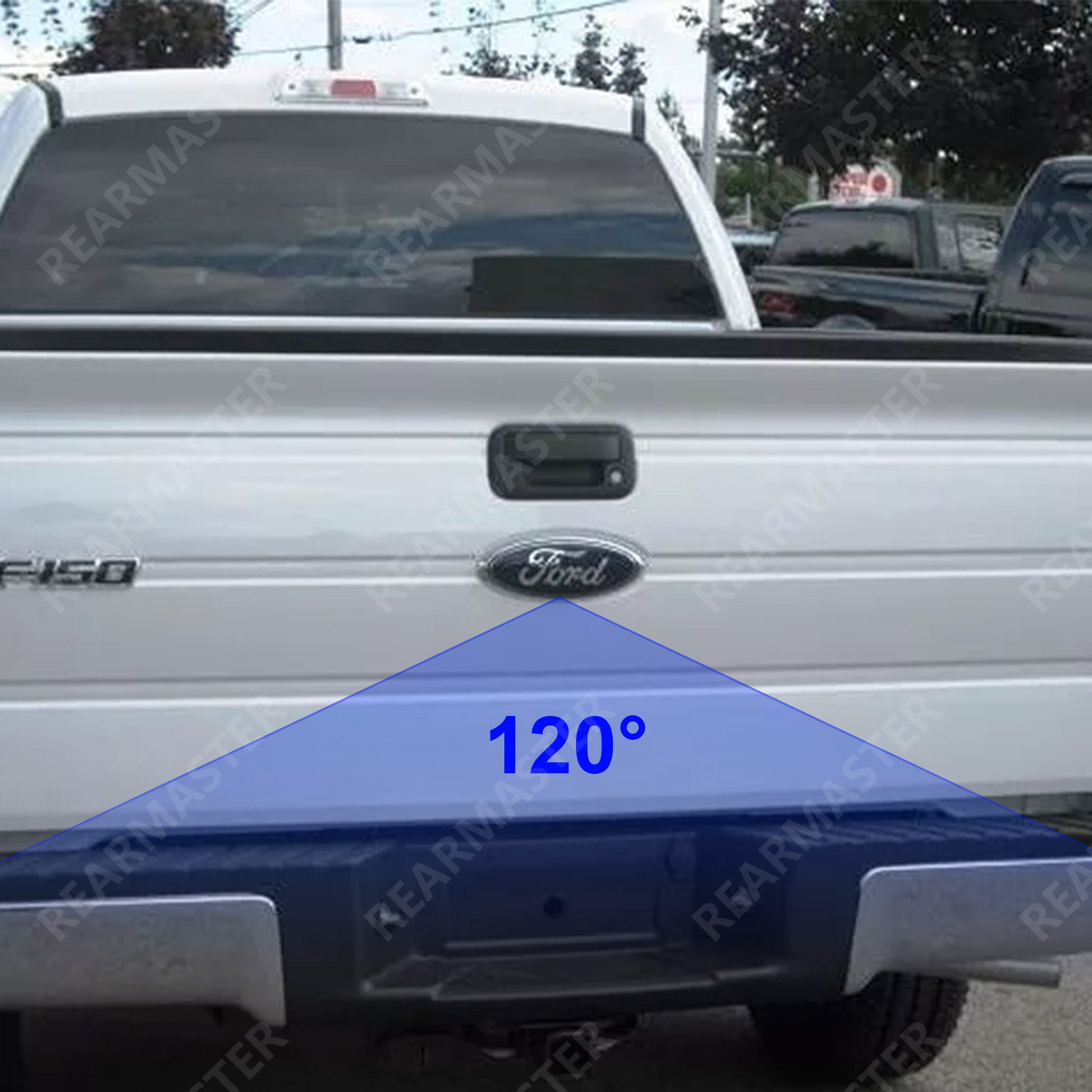

Real 120 degrees horizontal wide angle

Premium ABS material, IP68 waterproof, shockproof and dustproof , no worry of any harsh environments.

Quality guarantee and life time tech support.


Installation:

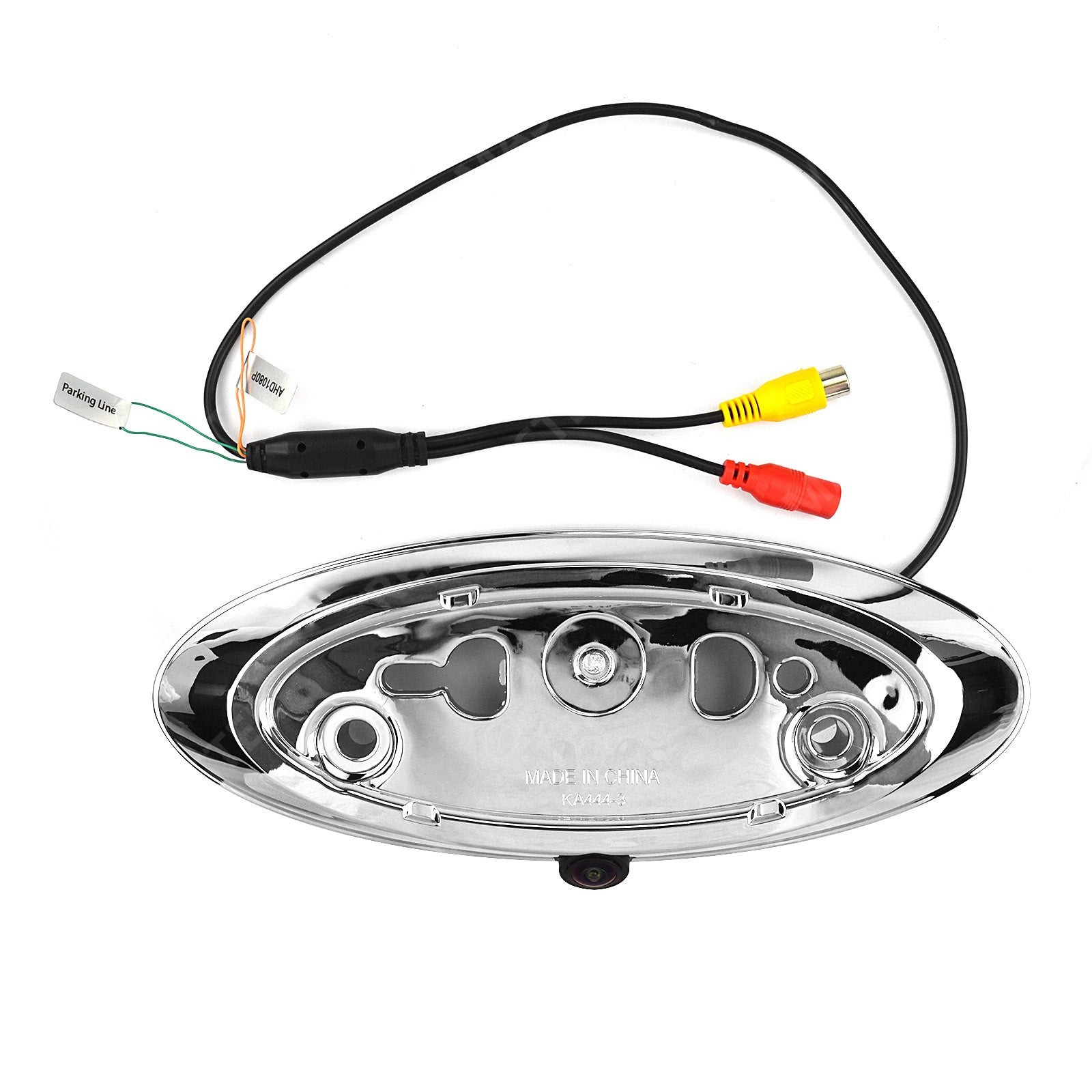

1.Connect the power cord (red) to vehicle DC12V power system.

2.Connect the video output(yellow) of the camera to the display/monitor of the vehicle.

3.Turn on the power to test the camera image, make sure it is showing right.


Specs:

Item Type: Truck Tailgate Handle Backup Camera

Material: ABS

Camera Sensor: 1/4 inch CMOS 1345 chip

Horizontal Angle: 120 degrees

Effective pixels: 1920 (H) x 1080 (V)

TV System:NTSC

Video format: AHD 1080P/700 TV Lines Switch

Power Supply: 12V DC

Waterproof: IP68

Operating Temperature: -20 to +70℃

Reminder Friendly:
Make sure your monitor or stereo has an RCA input.
The camera defaults to CVBS signal(NTSC)and supports AHD 1080P signal (by cutting the orange wire). If your Android device or monitor doesn't support AHD 1080P signal, please don't cut the orange wire to switch to AHD 1080P signal. Thank you.
Green line control parking line to switch
Go to Car settings >> Factory settings >> Reverse settings >> Select AHD 1080P Signal

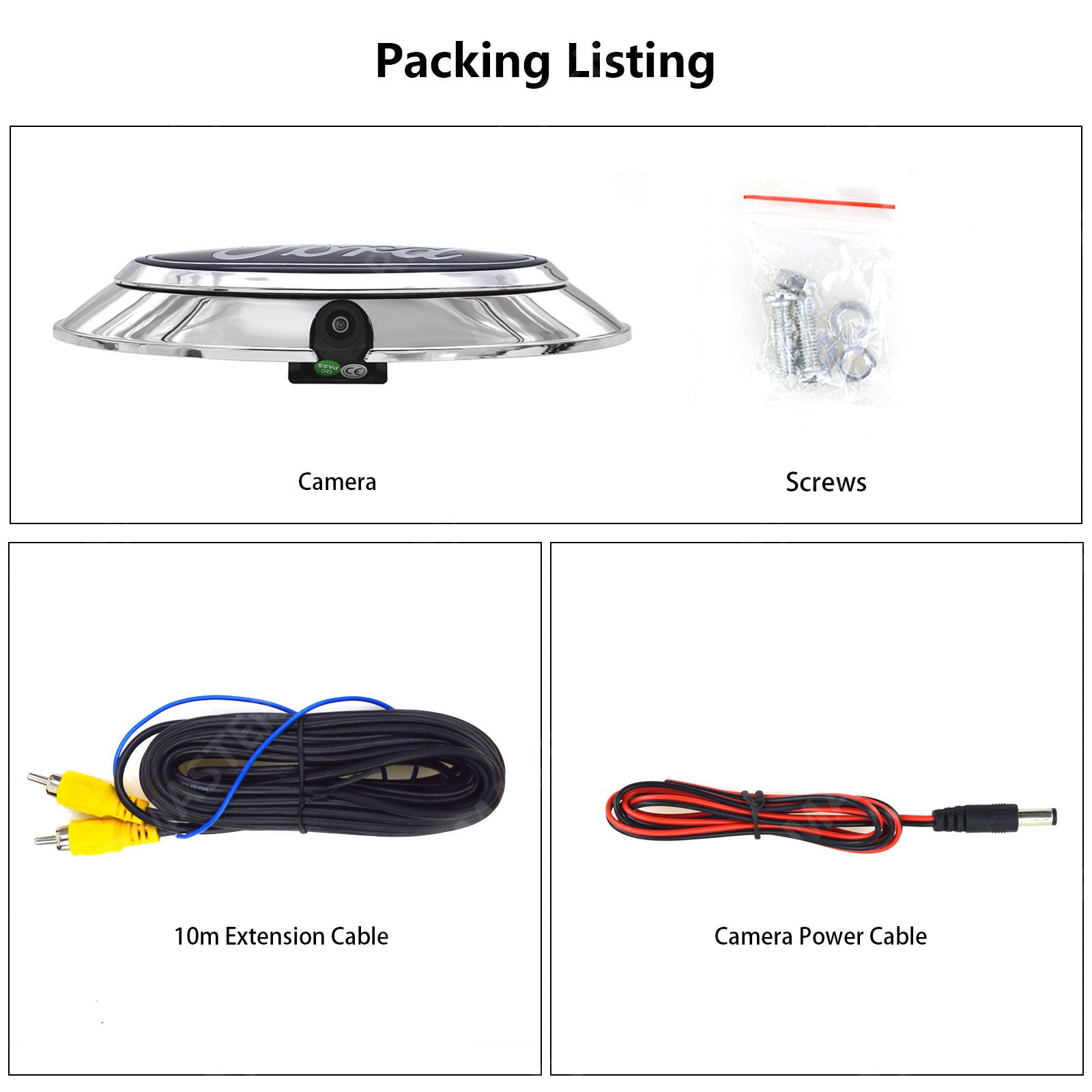

Package Included:

1 x Emblem Backup Camera

1 x Video Extension Cable
